The petascale system Karolina, acquired as part of the EuroHPC Joint Undertaking, was installed in 2021. In the TOP500 list, which evaluates supercomputers in terms of their performance, it ranked 69th worldwide, 19th in Europe, and in the Green500 list of the most energy-efficient supercomputers, it even ranked 15th. The HPC system is designed to coherently respond to the needs of its user communities, addressing complex scientific and industrial challenges, including standard numerical simulations, demanding data analysis, and artificial intelligence applications.

The new supercomputer reaches a theoretical peak performance of 15.7 PFlop/s, which corresponds to 15.7 quadrillion floating-point operations per second.

The supercomputer will consist of 6 main parts:

  • an universal part for standard numerical simulations, which will consist of approximately 722 computer servers with a theoretical peak performance of 3.8 PFlop/s
  • an accelerated part with 72 servers and each of them being equipped with 8 GPU accelerators providing a performance of 11 PFlop/s for standard HPC simulations and up to 180 PFlop/s for artificial intelligence computations,
  • a part designated for large dataset processing that will provide a shared memory of as high as 24 TB, and a performance of 74 TFlop/s,
  • 36 servers with a performance of 192 TFlop/s will be dedicated for providing cloud services,
  • a high-speed network to connect all parts as well as individual servers at a speed of up to 200 Gb/s,
  • data storages that will provide space for 1.4 PB of user data processing and will also include high-speed data storage with a speed of 1 TB/s for simulations as well as computations in the fields of advanced data analysis and artificial intelligence.
15.7
PFlop/s
theoretical peak
1.4
PB
storage
200
Gb/s
interconnect

TECHNICAL INFORMATION OF THE karolina SUPERCOMPUTER

PUT INTO OPERATION

summer 2021

THEORETICAL PEAK PERFORMANCE

15,690 Tflop/s

OPERATING SYSTEM

Centos 64 bit 7.x

COMPUTE NODES 831

CPU

720x 2x AMD 7H12, 64 cores, 2,6 GHz, 92,160 cores in total

72x 2x AMD 7763, 64 cores, 2,45 GHz, 9,216 cores in total

72x 8x NVIDIA A100 GPU, 576 GPU in total

32x Intel Xeon-SC 8628, 24 cores, 2,9 GHz, 768 cores in total

36x 2x AMD 7H12, 64 cores, 2,6 GHz, 4,608 cores in total

2x 2x AMD 7452, 32 cores, 2,35 GHz, 128 cores in total

RAM PER COMPUTE NODE 256 GB / 1 TB (GPU) / 24 TB fat node
320 GB HBM2 (8 x 40 GB) GPU
ACCELERATORS 576x NVIDIA A100
STORAGE 30.6 TB / home (1.93 GB/s sequential write performance, 3.10 GB/s sequential read performance),
1,361 TB / scratch (NVMe, 730.9 GB/s sequential write performance, 1, 198.3 GB/s sequential read performance)
INTERCONNECT Infiniband HDR 200 Gb/s

 Lear more at docs.it4i.cz.

CLUSTER UTILIZATION OF THE karolina SUPERCOMPUTER

Dashboard karolina

View current Salamon supercomputer data.

Dashboards display the current state of the supercomputer. The displayed values are:

  • utilization
  • node allocation
  • filling HOME and SCRATCH repositories
  • statistics of PBS tasks and TOP7 software modules
  • the number of days of operation since the last outage and the date of any planned new outage
  • MOTD (Message of the Day)
  • responsible for the Service of the day

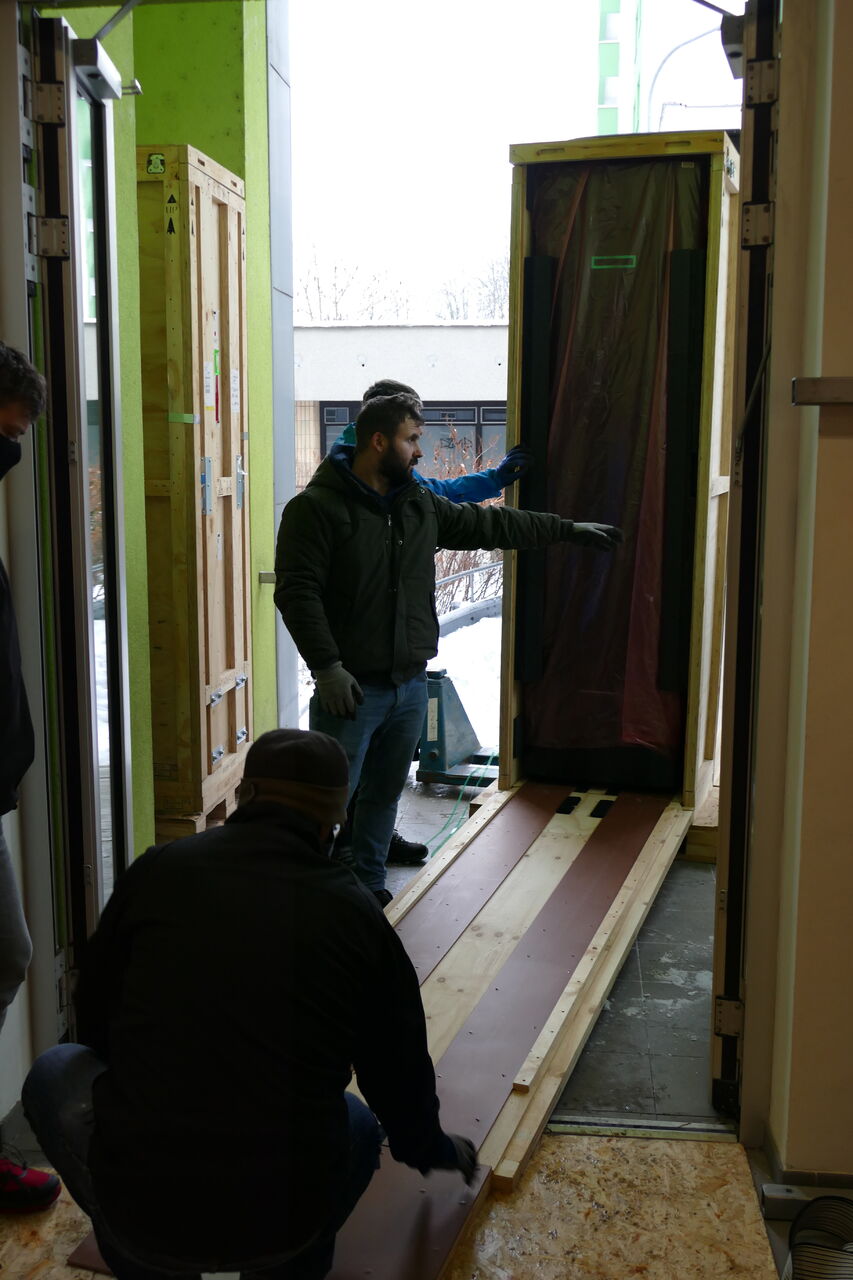

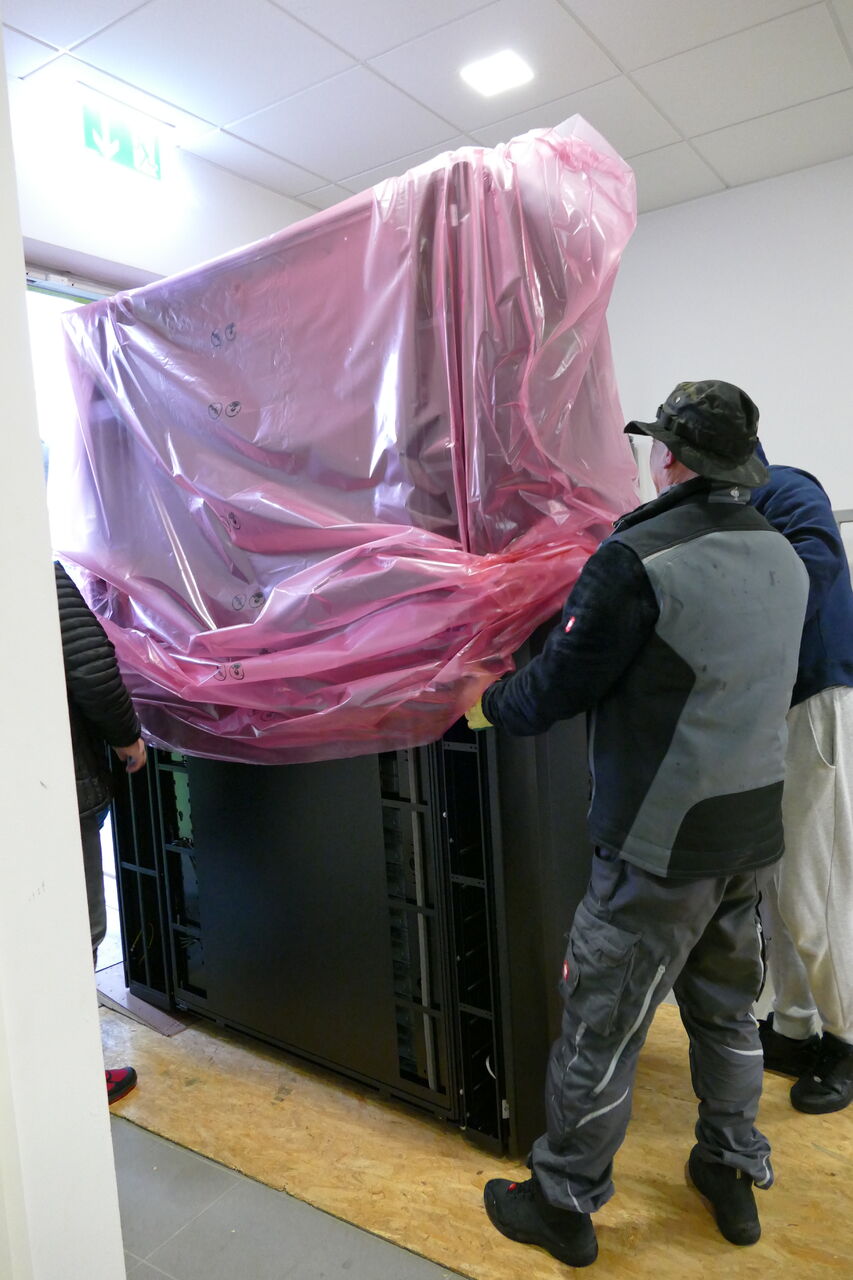

Gallery
